3.Workflow Core之控制结构

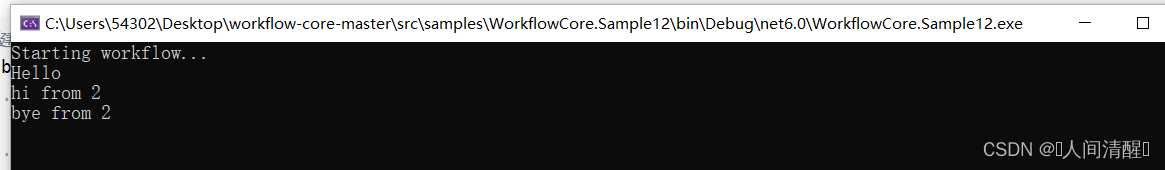

分支

可以在工作流中定义多个分支，更根据表达式的值选择执行哪个分支。

使用CreateBranch()方法定义分支

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
//创建两个分支
var branch1 = builder.CreateBranch()
    .StartWith<PrintMessage>()
        .Input(step => step.Message, data => "hi from 1")
    .Then<PrintMessage>()
        .Input(step => step.Message, data => "bye from 1");

var branch2 = builder.CreateBranch()
    .StartWith<PrintMessage>()
        .Input(step => step.Message, data => "hi from 2")
    .Then<PrintMessage>()
        .Input(step => step.Message, data => "bye from 2");

//如果data.value1的值为one，则执行branch1
//如果data.value1的值为two，则执行branch2
builder
    .StartWith<HelloWorld>()
    .Decide(data => data.Value1)
        .Branch((data, outcome) => data.Value1 == "one", branch1)
        .Branch((data, outcome) => data.Value1 == "two", branch2);

foreach

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public class ForEachWorkflow : IWorkflow
{
    public string Id => "Foreach";
    public int Version => 1;

    public void Build(IWorkflowBuilder<object> builder)
    {
        builder
            .StartWith<SayHello>()
            .ForEach(data => new List<int>() { 1, 2, 3, 4 })
                .Do(x => x
                    .StartWith<DisplayContext>()
                        .Input(step => step.Message, (data, context) => context.Item)
                    .Then<DoSomething>())
            .Then<SayGoodbye>();
    }
}

while

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public class WhileWorkflow : IWorkflow<MyData>
{
    public string Id => "While";
    public int Version => 1;

    public void Build(IWorkflowBuilder<MyData> builder)
    {
        builder
            .StartWith<SayHello>()
            .While(data => data.Counter < 3)
                .Do(x => x
                    .StartWith<DoSomething>()
                    .Then<IncrementStep>()
                        .Input(step => step.Value1, data => data.Counter)
                        .Output(data => data.Counter, step => step.Value2))
            .Then<SayGoodbye>();
    }
}

if

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public class IfWorkflow : IWorkflow<MyData>
{
    public void Build(IWorkflowBuilder<MyData> builder)
    {
        builder
            .StartWith<SayHello>()
            .If(data => data.Counter < 3).Do(then => then
                .StartWith<PrintMessage>()
                    .Input(step => step.Message, data => "Value is less than 3")
            )
            .If(data => data.Counter < 5).Do(then => then
                .StartWith<PrintMessage>()
                    .Input(step => step.Message, data => "Value is less than 5")
            )
            .Then<SayGoodbye>();
    }
}

并行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public class ParallelWorkflow : IWorkflow<MyData>
{
    public string Id => "parallel-sample";
    public int Version => 1;

    public void Build(IWorkflowBuilder<MyData> builder)
    {
        builder
            .StartWith<SayHello>()
            .Parallel()
                .Do(then =>
                    then.StartWith<Task1dot1>()
                        .Then<Task1dot2>()
                .Do(then =>
                    then.StartWith<Task2dot1>()
                        .Then<Task2dot2>()
                .Do(then =>
                    then.StartWith<Task3dot1>()
                        .Then<Task3dot2>()
            .Join()
            .Then<SayGoodbye>();
    }
}

按计划执行

在未来按照计划执行，使得工作流在后台异步执行

1
2
3
4
5
6
builder
    .StartWith(context => Console.WriteLine("Hello"))
    .Schedule(data => TimeSpan.FromSeconds(5)).Do(schedule => schedule
        .StartWith(context => Console.WriteLine("Doing scheduled tasks"))
    )
    .Then(context => Console.WriteLine("Doing normal tasks"));

延迟执行

延迟工作流的当前分支一段时间

1
2
3
builder
    .StartWith(context => Console.WriteLine("Hello"))
    .Delay(p => TimeSpan.FromSeconds(5) );

重复

设置一组重复的后台步骤，知道满足特定条件

1
2
3
4
5
6
builder
    .StartWith(context => Console.WriteLine("Hello"))
    .Recur(data => TimeSpan.FromSeconds(5), data => data.Counter > 5).Do(recur => recur
        .StartWith(context => Console.WriteLine("Doing recurring task"))
    )
    .Then(context => Console.WriteLine("Carry on"));

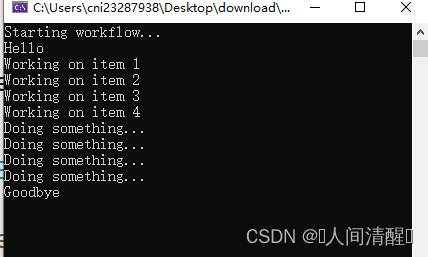

案例 Parallel ForEach

  • steps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
public class SayHello : StepBody
{
    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("Hello");
        return ExecutionResult.Next();
    }
}
public class DisplayContext : StepBody
{

    public object Item { get; set; }

    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine($"Working on item {Item}");
        return ExecutionResult.Next();
    }
}
public class DoSomething : StepBody
{
    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("Doing something...");
        return ExecutionResult.Next();
    }
}
public class SayGoodbye : StepBody
{
    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("Goodbye");
        return ExecutionResult.Next();
    }
}
  • workflow
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public class ForEachWorkflow : IWorkflow
{
    public string Id => "Foreach";
    public int Version => 1;

    public void Build(IWorkflowBuilder<object> builder)
    {
        builder
            .StartWith<SayHello>()
            .ForEach(data => new List<int> { 1, 2, 3, 4 })
                .Do(x => x
                    .StartWith<DisplayContext>()
                        .Input(step => step.Item, (data, context) => context.Item)
                    .Then<DoSomething>())
            .Then<SayGoodbye>();
    }
}
  • program
1
2
3
4
5
6
7
8
9
10
11
IServiceCollection services = new ServiceCollection();
services.AddLogging();
services.AddWorkflow();
var serviceProvider = services.BuildServiceProvider();
var host = serviceProvider.GetService<IWorkflowHost>();
host.RegisterWorkflow<ForEachWorkflow>();
host.Start();
Console.WriteLine("Starting workflow...");
string workflowId = host.StartWorkflow("Foreach").Result;
Console.ReadLine();
host.Stop();

在这里插入图片描述

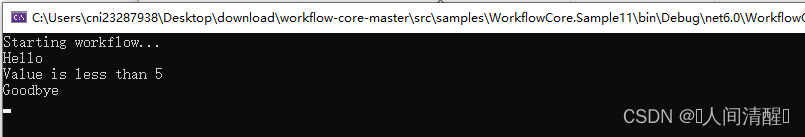

案例If

  • steps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class PrintMessage : StepBody
{
    public string Message { get; set; }

    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine(Message);
        return ExecutionResult.Next();
    }
}
public class SayGoodbye : StepBody
{
    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("Goodbye");
        return ExecutionResult.Next();
    }
}
public class SayHello : StepBody
{
    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("Hello");
        return ExecutionResult.Next();
    }
}
  • workflow
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public class MyData
{
    public int Counter { get; set; }
}
public class IfWorkflow : IWorkflow<MyData>
{
    public string Id => "if-sample";
    public int Version => 1;

    public void Build(IWorkflowBuilder<MyData> builder)
    {
        builder
            .StartWith<SayHello>()
            .If(data => data.Counter < 3).Do(then => then
                .StartWith<PrintMessage>()
                    .Input(step => step.Message, data => "Value is less than 3")
            )
            .If(data => data.Counter < 5).Do(then => then
                .StartWith<PrintMessage>()
                    .Input(step => step.Message, data => "Value is less than 5")
            )
            .Then<SayGoodbye>();
    }
}
  • program
1
2
3
4
5
6
7
8
9
10
11
12
13
14
IServiceCollection services = new ServiceCollection();
services.AddLogging();
services.AddWorkflow();
var serviceProvider = services.BuildServiceProvider();
var host = serviceProvider.GetService<IWorkflowHost>();
host.RegisterWorkflow<IfWorkflow, MyData>();
host.Start();

Console.WriteLine("Starting workflow...");
string workflowId = host.StartWorkflow("if-sample", new MyData { Counter = 4 }).Result;

Console.ReadLine();
host.Stop();

在这里插入图片描述

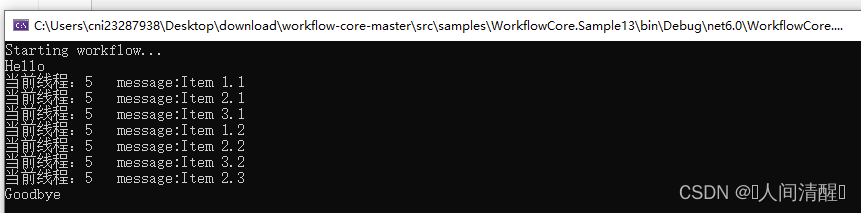

案例 Parallel Tasks

  • steps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class PrintMessage : StepBody
{
    public string Message { get; set; }

    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("当前线程："+ Thread.GetCurrentProcessorId().ToString()+ "message:"+Message);
        return ExecutionResult.Next();
    }
}
public class SayHello : StepBody
{
    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("Hello");
        return ExecutionResult.Next();
    }
}
public class SayGoodbye : StepBody
{
    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("Goodbye");
        return ExecutionResult.Next();
    }
}
  • workflow
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
public class MyData
{
    public int Counter { get; set; }
}
public class ParallelWorkflow : IWorkflow<MyData>
{
    public string Id => "parallel-sample";
    public int Version => 1;

    public void Build(IWorkflowBuilder<MyData> builder)
    {
        builder
            .StartWith<SayHello>()
            .Parallel()
                .Do(then =>
                    then.StartWith<PrintMessage>()
                            .Input(step => step.Message, data => "Item 1.1")
                        .Then<PrintMessage>()
                            .Input(step => step.Message, data => "Item 1.2"))
                .Do(then =>
                    then.StartWith<PrintMessage>()
                            .Input(step => step.Message, data => "Item 2.1")
                        .Then<PrintMessage>()
                            .Input(step => step.Message, data => "Item 2.2")
                        .Then<PrintMessage>()
                            .Input(step => step.Message, data => "Item 2.3"))
                .Do(then =>
                    then.StartWith<PrintMessage>()
                            .Input(step => step.Message, data => "Item 3.1")
                        .Then<PrintMessage>()
                            .Input(step => step.Message, data => "Item 3.2"))
            .Join()
            .Then<SayGoodbye>();
    }
}
  • program
1
2
3
4
5
6
7
8
9
10
11
12
13
IServiceCollection services = new ServiceCollection();
services.AddLogging();
services.AddWorkflow();
var serviceProvider = services.BuildServiceProvider();
var host = serviceProvider.GetService<IWorkflowHost>();
var controller = serviceProvider.GetService<IWorkflowController>();
controller.RegisterWorkflow<ParallelWorkflow, MyData>();//使用容器进行注册

Console.WriteLine("Starting workflow...");
controller.StartWorkflow<MyData>("parallel-sample");//使用容器开始

Console.ReadLine();
host.Stop();

在这里插入图片描述

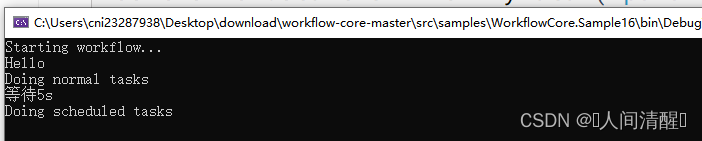

案例Schedule

  • workflow
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
class ScheduleWorkflow : IWorkflow
{
    public string Id => "schedule-sample";
    public int Version => 1;

    public void Build(IWorkflowBuilder<object> builder)
    {
        builder
            .StartWith(context => Console.WriteLine("Hello"))
            .Schedule(data => TimeSpan.FromSeconds(5)).Do(schedule => schedule
                .StartWith(context => Console.WriteLine("Doing scheduled tasks"))
            )
            .Then(context => { Console.WriteLine("Doing normal tasks"); Console.WriteLine("等待5s"); });
    }
}

在这里插入图片描述

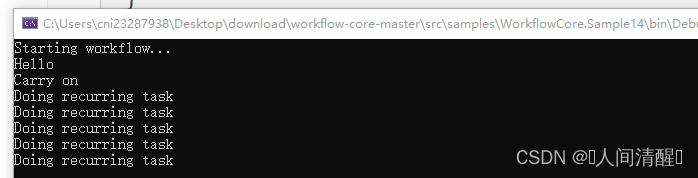

案例Recur

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public class MyData
{
    public int Counter { get; set; }
}
class RecurSampleWorkflow : IWorkflow<MyData>
{
    public string Id => "recur-sample";
    public int Version => 1;

    public void Build(IWorkflowBuilder<MyData> builder)
    {
        builder
            .StartWith(context => Console.WriteLine("Hello"))
            //5s一次，直到data.Counter > 5
            .Recur(data => TimeSpan.FromSeconds(5), data => data.Counter > 5).Do(recur => recur
                .StartWith(context => Console.WriteLine("Doing recurring task"))
            )
            .Then(context => Console.WriteLine("Carry on"));
    }
}

在这里插入图片描述

案例Branch

  • steps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public class PrintMessage : StepBody
{
    public string Message { get; set; }

    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine(Message);
        return ExecutionResult.Next();
    }
}
public class SayHello : StepBody
{
    public override ExecutionResult Run(IStepExecutionContext context)
    {
        Console.WriteLine("Hello");
        return ExecutionResult.Next();
    }
}
  • workflow
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class MyData
{
    public int Value { get; set; }
}

public class OutcomeWorkflow : IWorkflow<MyData>
{
    public string Id => "outcome-sample";
    public int Version => 1;

    public void Build(IWorkflowBuilder<MyData> builder)
    {
        var branch1 = builder.CreateBranch()
            .StartWith<PrintMessage>()
                .Input(step => step.Message, data => "hi from 1")
            .Then<PrintMessage>()
                .Input(step => step.Message, data => "bye from 1");

        var branch2 = builder.CreateBranch()
            .StartWith<PrintMessage>()
                .Input(step => step.Message, data => "hi from 2")
            .Then<PrintMessage>()
                .Input(step => step.Message, data => "bye from 2");
//如果data.value1的值为one，则执行branch1
//如果data.value1的值为two，则执行branch2
        builder
            .StartWith<SayHello>()
            .Decide(data => data.Value)
                .Branch(1, branch1)
                .Branch(2, branch2);
    }
}
  • program
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
IServiceCollection services = new ServiceCollection();
services.AddLogging();
services.AddWorkflow();
var serviceProvider = services.BuildServiceProvider();
var host = serviceProvider.GetService<IWorkflowHost>();
host.RegisterWorkflow<OutcomeWorkflow, MyData>();
host.Start();

Console.WriteLine("Starting workflow...");
host.StartWorkflow("outcome-sample", new MyData { Value = 2 });


Console.ReadLine();
host.Stop();

在这里插入图片描述

3.Workflow Core之控制结构

https://bubuweiying.site/3.WokflowCore之控制结构/

作者

步步为营

发布于

2024-03-23

更新于

2025-03-15

许可协议

#

喜欢这篇文章？打赏一下作者吧

交个朋友 ↘

分类

链接

标签

.net5
.net core40
AI11
AJAX4
C#5
C#互操作1
C#接口1
C++1
C++/CLI5
C/C++2
CPP9
CSS3
CSnakes1
ChatGPT1
Docker1
Dos1
Flex1
GMesh2
Git1
HTML5
JavaScript10
Linux1
MCP2
Nginx3
NumPy1
OCC6
OSS1
QML1
QT28
Quartz.net3
SEO2
SVG1
Semantic Kernel18
TypeScript1
UML1
VTK4
VUE30
WPF51
Web APIs6
Workflow Core7
blazor5
hexo1
http1
node.js2
python17
three.js2
单元测试1
模式匹配1
源代码生成器2
观察者模式1
计算机图形学5
高级调试2

目录

最新文章

×
