2024-05-08发表2025-03-15更新QT

QML入门

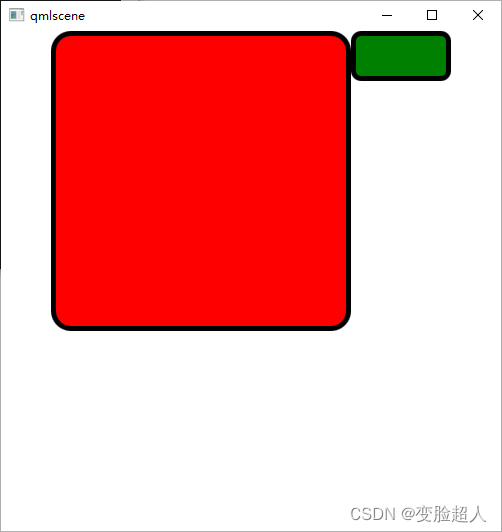

基本语法

import QtQuick 2.0 //导入内建qml的类型

//Item就像Qt中QtObject一样，属于一个基类
Item {
    width: 500
    height: 500

    Rectangle{
        id:red_rectangle //身份表示，类似于objectName
        x:50;y:0//坐标
        width: parent.width-200
        height: parent.height-200
        color: "red"
        border.width: 5
        border.color: "black"
        radius: 10*2
    }
    Rectangle{
        id:green_rectangle
        x:350;y:0//坐标
        width: red_rectangle.width-200 //使用了上一个的id
        height: 50
        color: "green"
        border.width: 5
        border.color: "black"
        radius: 10
    }
}

基本类型

bool	double	enumeration	int
list `QML对象集合`	real `浮点`	string	url
var `s一般属性类型`	data `日期`	point	rect
size

布局

import QtQuick 2.0

Column{
    spacing: 2
    Rectangle{color: "red";width:50;height: 50}
    Rectangle{color: "green";width:20;height: 50}
    Rectangle{color: "blue";width:50;height: 20}
}
//或者
Grid{
    columns: 3
    spacing: 2
    Rectangle{color: "red";width:50;height: 50}
    Rectangle{color: "green";width:20;height: 50}
    Rectangle{color: "blue";width:50;height: 20}
    Rectangle{color: "red";width:50;height: 50}
    Rectangle{color: "green";width:20;height: 50}
    Rectangle{color: "blue";width:50;height: 20}
}

函数定义与调用

import QtQuick 2.0
Rectangle{
    id:myrect
    width: 200
    height: 200
    //函数格式
    //function 函数名(参数名1，参数名2，...){...}//不需要指定参数类型
    function sayHello(strHello){
        console.log("hello "+strHello)
    }
    //设置鼠标活动范围
    MouseArea{
        anchors.fill: parent
        onClicked: myrect.sayHello("HiHi")
    }
}

自定义信号

import QtQuick 2.0

Item{
    width:500
    height:500

    MouseArea{
        anchors.fill: parent
        onClicked: myrect.btnClicked()
    }

    Rectangle{
        x:0
        id:myrect
        width: 200
        height: 200
        color:"pink"
        signal btnClicked
        onBtnClicked: {
            console.log("aaaa")
        }

    }
    Rectangle{
        x:200
        id:myrect1
        width: 200
        height: 200

    }

}

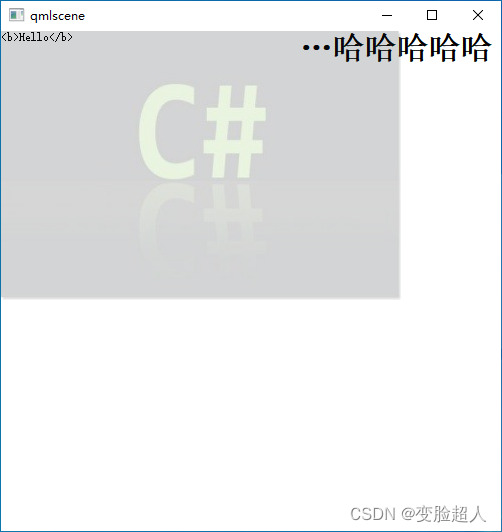

基本可视元素

import QtQuick 2.0

Item {
    width: 500
    height: 500
    Image {
        id: name
        source: "C.jpeg"
        fillMode: Image.Tile
        opacity: 0.2
        z:1//层次，越大越是顶层
    }
    Text {
        id: txt
        x:299
        width:200
        font.bold: true
        font.pointSize: 24
        text: qsTr("哈哈哈哈哈哈哈哈哈哈哈哈哈哈")
        elide: Text.ElideLeft
    }
    TextEdit{
        width: 200
        text:"<b>Hello</b>"
    }
}

事件

import QtQuick 2.0

Rectangle{
    width: 100
    height: 100
    focus: true //是否获取焦点
    Keys.onPressed: {
        if(event.key == Qt.Key_Q)
        {
            console.log("Q键被按下")
            event.accepted = true
        }
    }
}

导航案例

import QtQuick 2.0

Grid{
    Rectangle{
        id:upL
        width: 50
        height: 50
        color: focus?"yellow":"#668123"
        focus:true
        KeyNavigation.right: upM
    }
    Rectangle{
        id:upM
        width: 50
        height: 50
        color: focus?"yellow":"#ff8123"
        focus:false
        KeyNavigation.left: upL
        KeyNavigation.right: upR
    }
    Rectangle{
        id:upR
        width: 50
        height: 50
        color: focus?"yellow":"#66ee23"
        focus:false
        KeyNavigation.left: upM
    }
}

按方向键盘会出现这种交替的效果

动画

1.动画作为属性值的来源

语法：动画 on 属性

import QtQuick 2.0

Rectangle{
      width: 100
      height: 100
      color: "red"
      PropertyAnimation on x{to:50;duration: 1000;loops:Animation.Infinite}
      PropertyAnimation on y{to:50;duration: 1000;loops:Animation.Infinite}
}

//在此基础上增加缓和曲线,具有回弹的效果
Rectangle{
      width: 100
      height: 100
      color: "red"
      PropertyAnimation on x{to:50;duration: 1000;loops:Animation.Infinite;easing.type:Easing.OutBounce}
      PropertyAnimation on y{to:50;duration: 1000;loops:Animation.Infinite;easing.type:Easing.OutBounce}
}

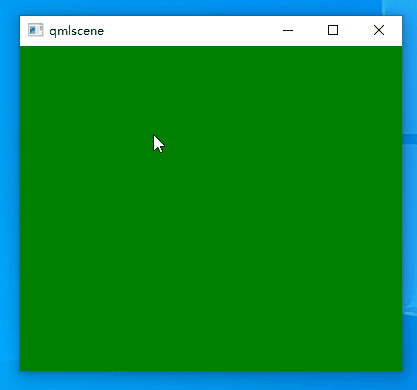

2.行为动画

Behavior为一个属性值来指定默认的动画

语法：Behavior on 属性

Item{
    width: 100
    height: 100

    Rectangle{
        id:green_rect
        width: 100
        height: 100
        color: "green"

        Behavior on x{
            PropertyAnimation{duration: 500}
        }
        Behavior on y{
            PropertyAnimation{duration: 500}
        }
    }
    MouseArea{
        anchors.fill: parent
        onClicked: {green_rect.x=mouse.x
            green_rect.y = mouse.y
        }
    }
}

3.信号处理器中的动画

Rectangle{
    id:green_rect
    width: 100
    height: 100
    color: "green"

    MouseArea{
        anchors.fill: parent
        onClicked: PropertyAnimation{
            target: green_rect
            properties: "x,y"
            to:50
            duration: 2000
        }
    }
}

4.独立动画

动画作为普通QML对象来创建

Rectangle{
    id:green_rect
    width: 100
    height: 100
    color: "green"
    PropertyAnimation{
        id:rect_animation
        target: green_rect
        properties: "x,y"
        duration: 1000
    }
    MouseArea{
        anchors.fill: parent
        onClicked: {
            rect_animation.to = 50
            rect_animation.running = true
        }
    }
}

5.状态切换

Rectangle{
    id:green_rect
    width: 100
    height: 100
    color: "green"
    MouseArea{
        anchors.fill: parent
        onClicked: {
            green_rect.state="moved_1"
        }
        onReleased: {
            green_rect.state="moved_2"
        }
    }
    //状态列表，列表语法 = states:[State{},State{}...]
    states: [
        State {
            name: "moved_1"
            PropertyChanges {
                target: green_rect
                x:50
                y:50
            }
        },
        State {
            name: "moved_2"
            PropertyChanges {
                target: green_rect
                x:20
                y:20
            }
        }
    ]
    transitions: Transition {
        PropertyAnimation{properties: "x,y";duration: 1000}
    }
}

6.属性动画元素

Rectangle{
    width:200
    height:200

    ColorAnimation on color{
        from: "yellow"
        to: "red"
        duration: 2000
    }
    RotationAnimation on rotation {
        to:90
        duration: 3000
        direction: RotationAnimation.Clockwise //顺时针
    }
}

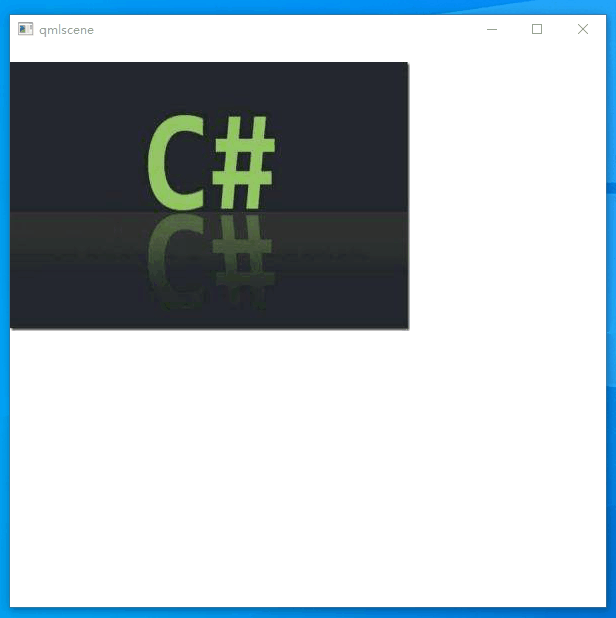

7.组合动画

Rectangle{
    width:200
    height:200

    Image {
        id: name
        source: "C.jpeg"
        anchors.horizontalCenter: parent
        y:0
        //队列动画
        SequentialAnimation on y {
            loops:Animation.Infinite//无限循环
            //数字动画
            NumberAnimation{
                to:250
                easing.type:Easing.OutBounce
                duration:1000
            }
            //暂停动画
            PauseAnimation {
                duration: 2000
            }
            NumberAnimation{
                to:0
                easing.type:Easing.OutBounce
                duration:1000
            }
        }
    }
}

QML与C++混合编程

1.利用QQuickView

在 pro文件中一定加入quick模块QT += quick

#include <QApplication>
#include <QQuickView>

int main(int argc,char* argv[])
{
    QApplication app(argc,argv);
    //加载qml文件到视图
    QQuickView view;
    view.setSource(QUrl("column.qml"));
    view.show();
    return app.exec();
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

## 2.qml使用C++函数

+ 在cpp文件中定义函数

```cpp
#include <QObject>
#include <QDateTime>

class ApplicationData : public QObject
{
    Q_OBJECT
public:
    explicit ApplicationData(QObject *parent = nullptr);

    //QML中调用C++函数，（注册一个方法）这个函数需要以Q_INVOKABLE进行标记
    //或者函数是一个QT的槽函数
    Q_INVOKABLE QDateTime getCurrentDataTime() const{
        return QDateTime::currentDateTime();
    }
};

qml中调用函数

import QtQuick 2.0

Text {
    //调用c++的函数
    text:applicationData.getCurrentDataTime()
}

main函数

#include <QApplication>
#include <QQuickView>
#include <QQmlContext>
#include "applicationdata.h"

int main(int argc,char* argv[])
{
    QApplication app(argc,argv);
    QQuickView view;
    //将C++对象作为属性注册到QML
    ApplicationData data;
    view.rootContext()->setContextProperty("applicationData",&data);//字符串与qml中对应
    view.setSource(QUrl("item.qml"));
    view.show();
    return app.exec();
}

3.C++调用qml中的函数

qml文件

import QtQuick 2.0

Text {
    function qmlFunction(msg){
        console.log("Message comes:",msg)
        return "abc"
    }
}

main文件

#include <QApplication>
#include <QQuickView>
#include <QQmlApplicationEngine>
#include <QQmlComponent>
#include <QDebug>
#include "applicationdata.h"

int main(int argc,char* argv[])
{
    QApplication app(argc,argv);

    QQmlApplicationEngine engine;
    QQmlComponent component(&engine,QUrl("item.qml"));
    QObject* object = component.create();
    QVariant msg = "Hello";
    QVariant returnedValue;
    //invokeMethod中的Q_RETURN_ARG、Q_ARG参数必须为QVariant类型
    QMetaObject::invokeMethod(object,"qmlFunction",
                              Q_RETURN_ARG(QVariant,returnedValue),//用于接收返回值
                              Q_ARG(QVariant,msg));//用于传递参数
    qDebug()<<"返回值："<<returnedValue.toString();
    return app.exec();
}

4. qml中信号出发cpp中槽函数

import QtQuick 2.0

Item {
    id:item
    width: 100
    height: 100
    signal qmlSignal(string msg)
    MouseArea{
        anchors.fill: parent
        onClicked: item.qmlSignal("Hello qml")
    }
}

cpp文件

#include <QObject>
#include <QDebug>
class MyClass : public QObject
{
    Q_OBJECT
public:
    explicit MyClass(QObject *parent = nullptr);
public slots:
    void slotTest(QString){
        qDebug()<<s;
    }
};

main函数

#include <QApplication>
#include <QQuickView>
#include <QQuickItem>
#include  "myclass.h"

int main(int argc,char* argv[])
{
    QApplication app(argc,argv);

    QQuickView view(QUrl("item.qml"));
    QObject* item= view.rootObject();
    MyClass myclass;
    //这里的QString对应qml的string
    QObject::connect(item,SIGNAL(qmlSignal(QString)),&myclass,SLOT(slotTest(QString)));
    view.show();
    return app.exec();
}
