WPF控件模板、数据模板、容器样式选择器

WPF控件模板

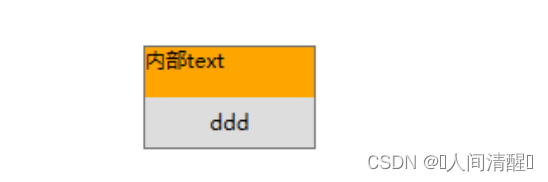

利用Tag来绑定控件模板内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<!--模板定义-->
<Style x:Key="ButtonStyle1" TargetType="{x:Type Button}">
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="{x:Type Button}">
                        <Border x:Name="border" >
                            <UniformGrid Rows="2" Columns="1">
                            <TextBlock Text="{TemplateBinding Tag}" Background="Orange"/>
                            <ContentPresenter x:Name="contentPresenter"/>
                            </UniformGrid>
                        </Border>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
<!--使用-->
<Button Style="{DynamicResource ButtonStyle1}" Height="60" Width="100" Tag="内部text">
            ddd
</Button>

ItemsControl是基类，ListBox等都是继承自ItemsControl。ItemsControl里面有一个DataTemplate属性，可以定义数据模板

DataTemplate

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
<Window x:Class="WpfApp13.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp13"
        mc:Ignorable="d"
        Title="MainWindow" Height="250" Width="400">
    <Window.Resources>
        <x:Array x:Key="datas" Type="local:Person">
            <local:Person Name="Tom1" Age="10" Top="10" Left="10"/>
            <local:Person Name="Tom2" Age="10" Top="30" Left="20"/>
            <local:Person Name="Tom3" Age="10" Top="50" Left="30"/>
            <local:Person Name="Tom4" Age="10" Top="70" Left="40"/>
            <local:Person Name="Tom5" Age="10" Top="90" Left="50"/>
            <local:Person Name="Tom5" Age="10" Top="110" Left="60"/>
            <local:Person Name="Tom5" Age="10" Top="130" Left="70"/>
        </x:Array>
    </Window.Resources>

    <StackPanel>
        <ListView ItemsSource="{StaticResource datas}" Height="218">
            <ListView.ItemsPanel>
                <ItemsPanelTemplate>
                    <Canvas/>
                    <!--下面的ItemTemplate在这个容器中展示，默认是stackPanel-->
                    <!--但是并在不是直接在这个容器中展示，而是中间还有一层ContentPresenter-->
                </ItemsPanelTemplate>
            </ListView.ItemsPanel>

			 <!--Canvas.Left等属性必须在这里设定而不能在下面的ItemTemplate-->
             <!--原因就是因为中间Canvas和ItemTemplate中间还有一层ContentPresenter-->
            <ListView.ItemContainerStyle>
                <Style TargetType="ListViewItem">
                    <Setter Property="Canvas.Left" Value="{Binding Left}"/>
                    <Setter Property="Canvas.Top"  Value="{Binding Top}"/>

                </Style>
            </ListView.ItemContainerStyle>

            <ListView.ItemTemplate>
                <DataTemplate>
                    <Grid>
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                        </Grid.ColumnDefinitions>
                        <TextBlock Text="{Binding Name}" Grid.Column="0"/>
                        <TextBlock Text="===" Grid.Column="1"/>
                        <TextBlock Text="{Binding Age}" Grid.Column="2" />
                    </Grid>
                </DataTemplate>
            </ListView.ItemTemplate>
        </ListView>
    </StackPanel>
</Window>

筛选数据

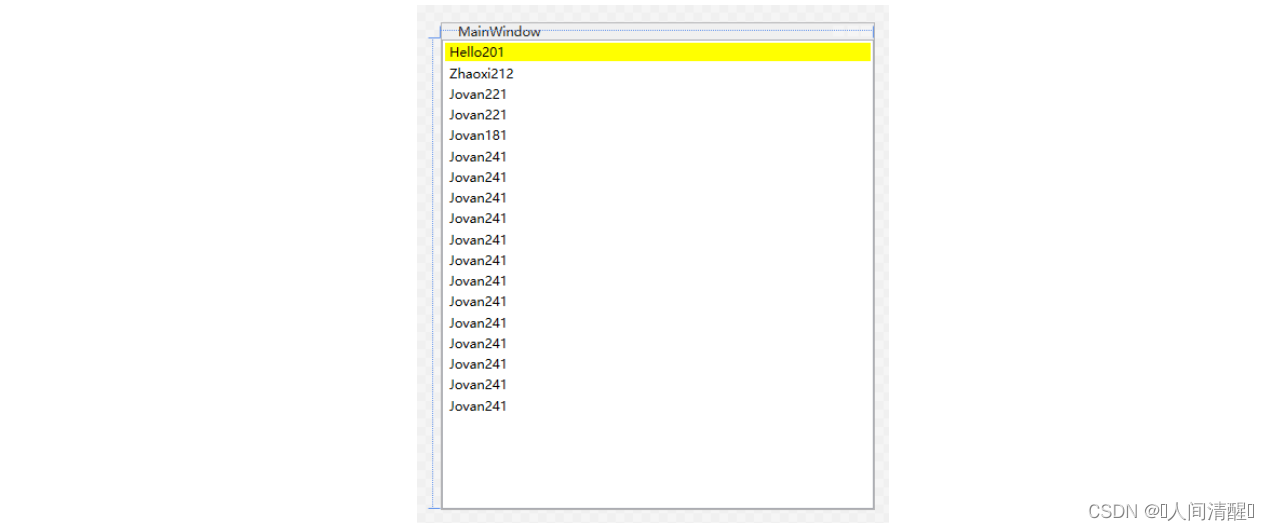

使用DataTrigger筛选数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
<Window x:Class="WpfApp12.MainWindow"
     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp12"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="400">
    <Window.Resources>
        <x:Array Type="local:Person" x:Key="datas">
            <local:Person Name="Hello" Age="20" Gender="1"/>
            <local:Person Name="Zhaoxi" Age="21" Gender="2"/>
            <local:Person Name="Jovan" Age="22" Gender="1"/>
            <local:Person Name="Jovan" Age="22" Gender="1"/>
            <local:Person Name="Jovan" Age="18" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
        </x:Array>
    </Window.Resources>
    <Grid>
        <ListView ItemsSource="{StaticResource datas}" >
            <ListView.ItemsPanel>
                <ItemsPanelTemplate>
                    <StackPanel />
                </ItemsPanelTemplate>
            </ListView.ItemsPanel>

            <ListView.ItemContainerStyle>
                <Style TargetType="ListViewItem">
                    <Style.Triggers>
                        <!--在Style里面设置筛选-->
                        <!--使用DataTrigger筛选-->
                        <DataTrigger Binding="{Binding Age}" Value="20">
                            <Setter Property="Background" Value="Yellow"/>
                        </DataTrigger>
                    </Style.Triggers>
                </Style>
            </ListView.ItemContainerStyle>

            <ListView.ItemTemplate>
                <DataTemplate>
                    <StackPanel Orientation="Horizontal">
                        <TextBlock Text="{Binding Name}"/>
                        <TextBlock Text="{Binding Age}" />
                        <TextBlock Text="{Binding Gender}"/>
                    </StackPanel>
                </DataTemplate>
            </ListView.ItemTemplate>
        </ListView>
    </Grid>
</Window>

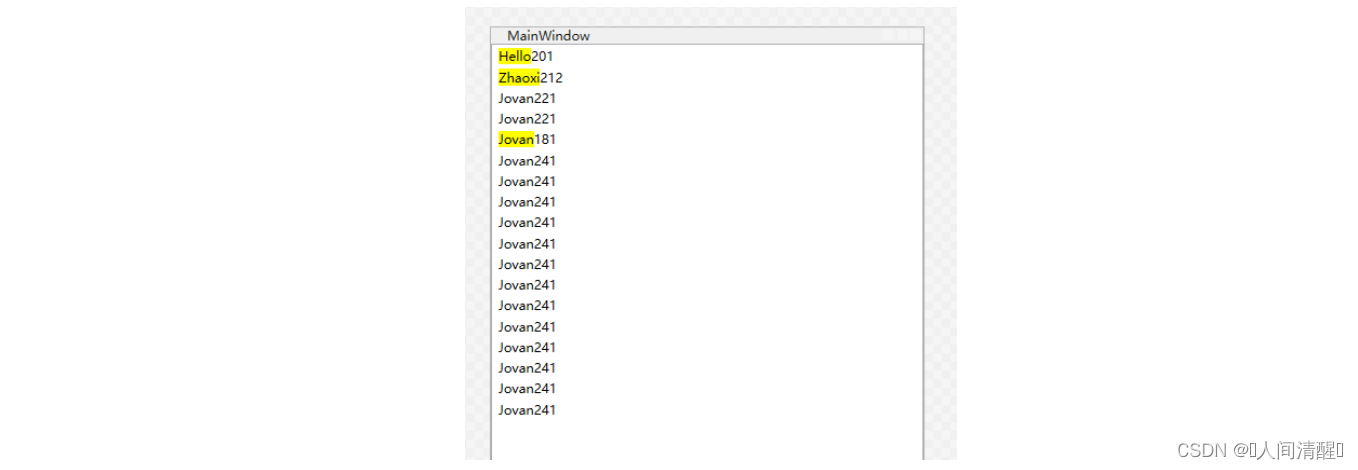

数据模板选择器

但是使用DataTrigger功能比较少，如果要选择某个区间的数据，可以使用模板选择器

新建ListViewItemTemplateSelector类，该类继承自DataTemplateSelector

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
class ListViewItemTemplateSelector : DataTemplateSelector
{
    public DataTemplate NormalTemplate { get; set; }
    public DataTemplate AlarmTemplate { get; set; }

    /// <summary>
    ///
    /// </summary>
    /// <param name="item">每个控件子项所对应的数据子项</param>
    /// <param name="container"></param>
    /// <returns>当前的这个子项可使用的数据模板</returns>
    public override DataTemplate SelectTemplate(object item, DependencyObject container)
    {
        var person = item as Person;
        if (person.Age > 21)
        {
            return AlarmTemplate;
        }
        return NormalTemplate;
    }
}

xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
<Window x:Class="WpfApp12.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp12"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="400">
    <Window.Resources>
        <x:Array Type="local:Person" x:Key="datas">
            <local:Person Name="Hello" Age="20" Gender="1"/>
            <local:Person Name="Zhaoxi" Age="21" Gender="2"/>
            <local:Person Name="Jovan" Age="22" Gender="1"/>
            <local:Person Name="Jovan" Age="22" Gender="1"/>
            <local:Person Name="Jovan" Age="18" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
        </x:Array>

        <!--设置两个DataTemplae供选择器选择-->
        <DataTemplate x:Key="NormalTemp">
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition/>
                    <ColumnDefinition/>
                    <ColumnDefinition/>
                </Grid.ColumnDefinitions>
                <TextBlock Text="{Binding Name}" Background="Yellow"/>
                <TextBlock Text="{Binding Age}" Grid.Column="1"/>
                <TextBlock Text="{Binding Gender}" Grid.Column="2"/>
            </Grid>
        </DataTemplate>
        <DataTemplate x:Key="AlarmTemp">
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition/>
                    <ColumnDefinition/>
                    <ColumnDefinition/>
                </Grid.ColumnDefinitions>
                <TextBlock Text="{Binding Name}"/>
                <TextBlock Text="{Binding Age}" Grid.Column="1"/>
                <TextBlock Text="{Binding Gender}" Grid.Column="2"/>
            </Grid>
        </DataTemplate>


    </Window.Resources>
    <Grid>
        <ListView ItemsSource="{StaticResource datas}" >
            <ListView.ItemTemplateSelector>
                <!--设置两个属性-->
                <local:ListViewItemTemplateSelector NormalTemplate="{StaticResource NormalTemp}" AlarmTemplate="{StaticResource AlarmTemp}"/>
            </ListView.ItemTemplateSelector>
        </ListView>
    </Grid>
</Window>

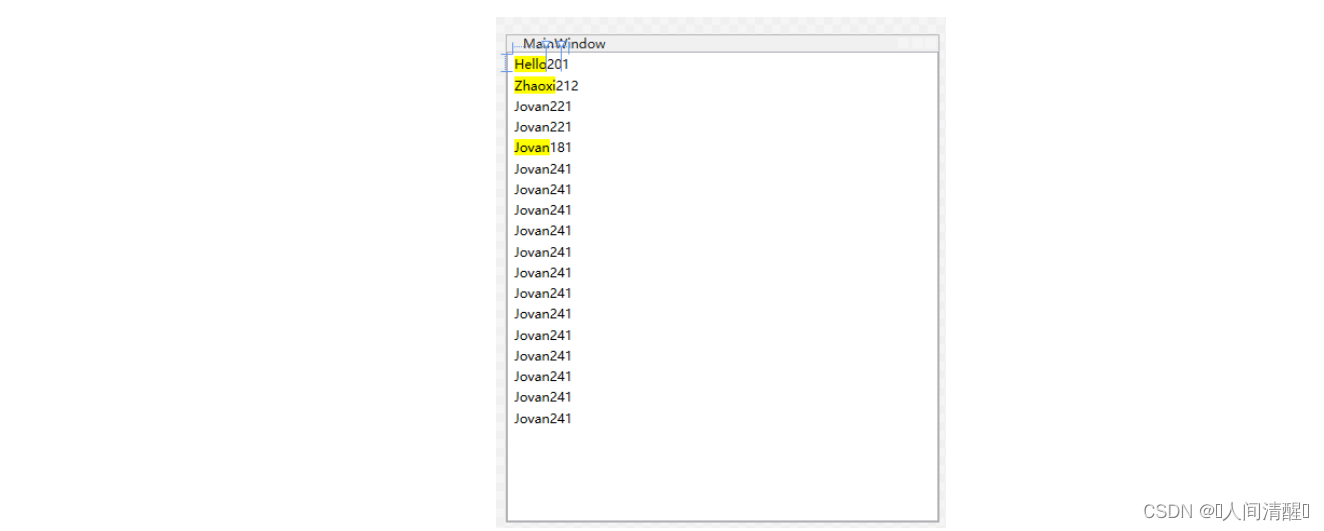

容器样式选择器

也可以使用样式选择器

先创建一个ListViewStyleSelector类，继承自StyleSelector

1
2
3
4
5
6
7
8
9
10
11
12
13
14
class ListViewStyleSelector : StyleSelector
{
    public Style NormalStyle { get; set; }
    public Style AlarmStyle { get; set; }
    public override Style SelectStyle(object item, DependencyObject container)
    {
        var person = item as Person;
        if (person.Age > 21)
        {
            return AlarmStyle;
        }
        return NormalStyle;
    }
}

XAML

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
<Window x:Class="WpfApp12.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp12"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="400">
    <Window.Resources>
        <x:Array Type="local:Person" x:Key="datas">
            <local:Person Name="Hello" Age="20" Gender="1"/>
            <local:Person Name="Zhaoxi" Age="21" Gender="2"/>
            <local:Person Name="Jovan" Age="22" Gender="1"/>
            <local:Person Name="Jovan" Age="22" Gender="1"/>
            <local:Person Name="Jovan" Age="18" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
            <local:Person Name="Jovan" Age="24" Gender="1"/>
        </x:Array>
        <!--设置两个Style供选择器选择-->
        <Style x:Key="NormalStyle" TargetType="ListViewItem">
            <Setter Property="ContentTemplate">
                <Setter.Value>
                    <DataTemplate >
                        <Grid>
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition/>
                                <ColumnDefinition/>
                                <ColumnDefinition/>
                            </Grid.ColumnDefinitions>
                            <TextBlock Text="{Binding Name}"  Background="Yellow"/>
                            <TextBlock Text="{Binding Age}" Grid.Column="1"/>
                            <TextBlock Text="{Binding Gender}" Grid.Column="2"/>
                        </Grid>
                    </DataTemplate>
                </Setter.Value>
            </Setter>
        </Style>

        <Style x:Key="AlarmStyle" TargetType="ListViewItem">
            <Setter Property="ContentTemplate">
                <Setter.Value>
                    <DataTemplate >
                        <Grid>
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition/>
                                <ColumnDefinition/>
                                <ColumnDefinition/>
                            </Grid.ColumnDefinitions>
                            <TextBlock Text="{Binding Name}"/>
                            <TextBlock Text="{Binding Age}" Grid.Column="1"/>
                            <TextBlock Text="{Binding Gender}" Grid.Column="2"/>
                        </Grid>
                    </DataTemplate>
                </Setter.Value>
            </Setter>
        </Style>
    </Window.Resources>
    <Grid>
        <ListView ItemsSource="{StaticResource datas}" >
            <ListView.ItemContainerStyleSelector>
                <local:ListViewStyleSelector NormalStyle="{StaticResource NormalStyle}" AlarmStyle="{StaticResource AlarmStyle}"/>
            </ListView.ItemContainerStyleSelector>
        </ListView>
    </Grid>
</Window>

总结：因为style中可以设置Template属性，又可以设置样式。所以在Templat标签中完成的内容都可以可以使用Style来代替。

WPF控件模板、数据模板、容器样式选择器

https://bubuweiying.site/WPF控件模板、数据模板、容器样式选择器/

作者

步步为营

发布于

2024-05-08

更新于

2025-03-15

许可协议

#

喜欢这篇文章？打赏一下作者吧

交个朋友 ↘

分类

链接

标签

.net5
.net core40
AI11
AJAX4
C#5
C#互操作1
C#接口1
C++1
C++/CLI5
C/C++2
CPP9
CSS3
CSnakes1
ChatGPT1
Docker1
Dos1
Flex1
GMesh2
Git1
HTML5
JavaScript10
Linux1
MCP2
Nginx3
NumPy1
OCC6
OSS1
QML1
QT28
Quartz.net3
SEO2
SVG1
Semantic Kernel18
TypeScript1
UML1
VTK4
VUE30
WPF51
Web APIs6
Workflow Core7
blazor5
hexo1
http1
node.js2
python17
three.js2
单元测试1
模式匹配1
源代码生成器2
观察者模式1
计算机图形学5
高级调试2

目录

最新文章

×
