WPF MVVM

WPF MVVM

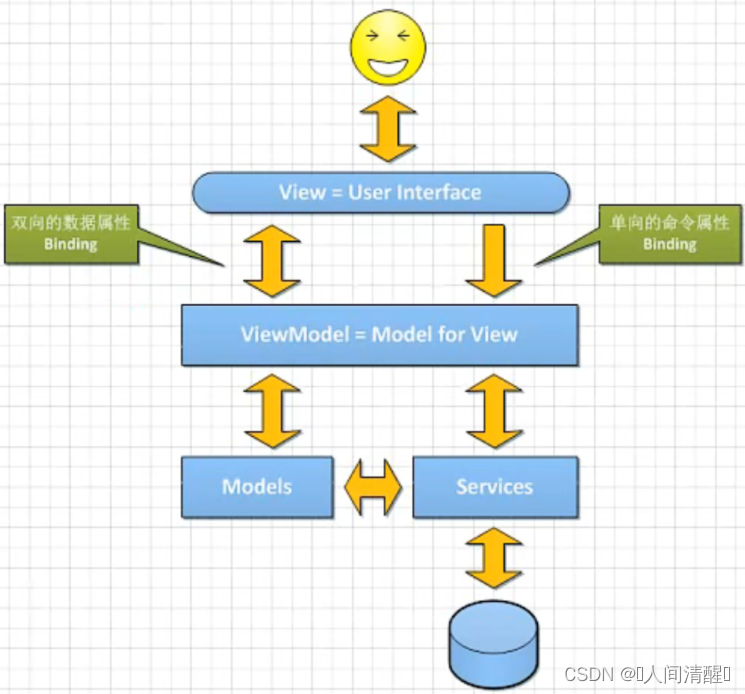

MVVM=Model+View+ViewModel

  • Model:现实世界中对象抽象的结果，也就是实体模型
  • View:UI界面
  • ViewModel:为UI界面服务的模型，可以理解为数据传输对象（DTO）
    ViewModel和View的沟通有两个方面：数据和操作
  • 传递数据–使用数据属性
  • 传递操作–使用命令属性
    很多人不理解MVVM和MVC的区别，我个人的理解是，MVC中的C可控范围更大，不仅可以控制View也能控制Model。而MVVM中，View是主动从ViewModel中获取数据，如果获取不到也不会导致程序崩溃，虽然VIewModel也可以去操作View，但是原则是View层主动获取数据，ViewModel是被动的提供数据。在这里插入图片描述

案例1：

关注点：NotificationObject与数据属性
DelegateCommand与命令属性

命令的传递（单向）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
class DelegateCommand : ICommand
{
    public bool CanExecute(object parameter)
    {
        if (this.CanExecuteFunc == null)
        {
            return true;
        }

        return this.CanExecuteFunc(parameter);
    }

    public event EventHandler CanExecuteChanged;

    public void Execute(object parameter)
    {
        if (this.ExecuteAction == null)
        {
            return;
        }
        this.ExecuteAction(parameter);
    }

    public Action<object> ExecuteAction { get; set; }
    public Func<object, bool> CanExecuteFunc { get; set; }
}

ViewModels

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//通知Binding属性更新,供ViewModels使用的类
class NotificationObject : INotifyPropertyChanged
{
    public event PropertyChangedEventHandler PropertyChanged;

    public void RaisePropertyChanged(string propertyName)
    {
        //也可以这样声明，自动获取方法调用方的方法名称或属性名称
        //public void RaiseChanged([CallerMemberName]string proName=null)
        if (this.PropertyChanged != null)
        {
            this.PropertyChanged.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
    }
}

该案例只有一个MainWindow，所以创建一个MainWindowViewModel类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
class MainWindowViewModel : NotificationObject
{
    private double input1;

    public double Input1
    {
        get { return input1; }
        set
        {
            input1 = value;
            this.RaisePropertyChanged("Input1");
        }
    }

    private double input2;

    public double Input2
    {
        get { return input2; }
        set
        {
            input2 = value;
            this.RaisePropertyChanged("Input2");
        }
    }

    private double result;

    public double Result
    {
        get { return result; }
        set
        {
            result = value;
            this.RaisePropertyChanged("Result");
        }
    }

    public DelegateCommand AddCommand { get; set; }
    public DelegateCommand SaveCommand { get; set; }

    private void Add(object parameter)
    {
        this.Result = this.Input1 + this.Input2;
    }

    private void Save(object parameter)
    {
        SaveFileDialog dlg = new SaveFileDialog();
        dlg.ShowDialog();
    }

    public MainWindowViewModel()
    {
        this.AddCommand = new DelegateCommand();
        this.AddCommand.ExecuteAction = new Action<object>(this.Add);

        this.SaveCommand = new DelegateCommand();
        this.SaveCommand.ExecuteAction = new Action<object>(this.Save);
    }
}

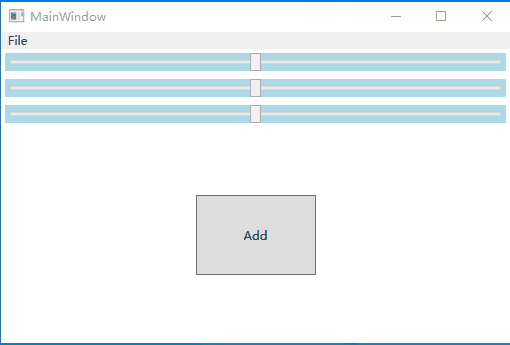

主界面

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<Window x:Class="SimpleMvvmDemo.Client.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Title="MainWindow" Height="350" Width="525">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
            <RowDefinition Height="*" />
        </Grid.RowDefinitions>
        <Menu>
            <MenuItem Header="_File">
                <MenuItem Header="_Save" Command="{Binding SaveCommand}" />
            </MenuItem>
        </Menu>
        <Grid Grid.Row="1">
            <Grid.RowDefinitions>
                <RowDefinition Height="Auto" />
                <RowDefinition Height="Auto" />
                <RowDefinition Height="Auto" />
                <RowDefinition Height="*" />
            </Grid.RowDefinitions>
            <Slider x:Name="slider1" Grid.Row="0" Background="LightBlue" Minimum="-100" Maximum="100" Margin="4"  Value="{Binding Input1}" />
            <Slider x:Name="slider2" Grid.Row="1" Background="LightBlue" Minimum="-100" Maximum="100" Margin="4"  Value="{Binding Input2}" />
            <Slider x:Name="slider3" Grid.Row="2" Background="LightBlue" Minimum="-100" Maximum="100" Margin="4" Value="{Binding Result}" />
            <Button x:Name="addButton" Grid.Row="3" Content="Add" Width="120" Height="80" Command="{Binding AddCommand}"/>
        </Grid>
    </Grid>
</Window>

由于Binding不指定Source默认使用了控件的DataContext，所以只需要在MainWindow中增加DataContext，子代控件便可以共享这个DataContext。

1
2
3
4
5
6
7
8
public partial class MainWindow : Window
{
    public MainWindow()
    {
        InitializeComponent();
        this.DataContext = new MainWindowViewModel();
    }
}

案例2：

项目使用了Microsoft.Practices.Prism，需要提前引用

  • Models

要显示单品和饭店信息，所以定义Dish和Restaurant两个类

1
2
3
4
5
6
7
8
9
10
11
12
13
public class Dish : NotificationObject
{
    public string Name { get; set; }
    public string Category { get; set; }
    public string Comment { get; set; }
    public double Score { get; set; }
}
class Restaurant : NotificationObject
{
    public string Name { get; set; }
    public string Address { get; set; }
    public string PhoneNumber { get; set; }
}
  • Services

具有获得菜单和点单服务，先定义相关接口，再实现类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public interface IDataService
{
    List<Dish> GetAllDishes();
}
class XmlDataService : IDataService
{
    public List<Dish> GetAllDishes()
    {
        List<Dish> dishList = new List<Dish>();
        string xmlFileName = System.IO.Path.Combine(Environment.CurrentDirectory, @"Data\Data.xml");
        XDocument xDoc = XDocument.Load(xmlFileName);
        var dishes = xDoc.Descendants("Dish");
        foreach (var d in dishes)
        {
            Dish dish = new Dish();
            dish.Name = d.Element("Name").Value;
            dish.Category = d.Element("Category").Value;
            dish.Comment = d.Element("Comment").Value;
            dish.Score = double.Parse(d.Element("Score").Value);
            dishList.Add(dish);
        }

        return dishList;
    }
}
1
2
3
4
5
6
7
8
9
10
11
interface IOrderService
{
    void PlaceOrder(List<string> dishes);
}
class MockOrderService : IOrderService
{
    public void PlaceOrder(List<string> dishes)
    {
        System.IO.File.WriteAllLines(@"C:\Users\cni23287938\Desktop\orders.txt", dishes.ToArray());
    }
}
  • ViewModels

因为菜单后面需要具有一个是否选择项，所以要新定义一个DishMenuItemViewModel类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
class DishMenuItemViewModel : NotificationObject
{
    public Dish Dish { get; set; }

    private bool isSelected;

    public bool IsSelected
    {
        get { return isSelected; }
        set
        {
            isSelected = value;
            this.RaisePropertyChanged("IsSelected");
        }
    }
}

MainWindowViewModel

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
class MainWindowViewModel : NotificationObject
{
    private int count;

    public int Count
    {
        get { return count; }
        set { count = value; this.RaisePropertyChanged("Count"); }
    }

    private Restaurant restaurant;

    public Restaurant Restaurant
    {
        get { return restaurant; }
        set { restaurant = value; this.RaisePropertyChanged("restaurant"); }
    }
    private List<DishMenuItemViewModel> dishMenu;

    public List<DishMenuItemViewModel> DishMenu
    {
        get { return dishMenu; }
        set { dishMenu = value; this.RaisePropertyChanged("DishMenu"); }
    }
    public DelegateCommand PlaceOrderCommand { get; set; }
    public DelegateCommand SelectMenuItemCommand { get; set; }


    public MainWindowViewModel()
    {
        LoadRestaurant();
        LoadDishMenu();
        PlaceOrderCommand = new DelegateCommand(this.PlaceOrderCommandExecute);
        SelectMenuItemCommand = new DelegateCommand(this.SelectMenuItemExecute);
    }


    private void LoadRestaurant()
    {
        this.Restaurant = new Restaurant();
        this.Restaurant.Name = "Crazy";
        this.restaurant.Address = "北京";
        this.restaurant.PhoneNumber = "1";
    }

    private void LoadDishMenu()
    {
        IDataService ds = new XmlDataService();
        var dishes = ds.GetAllDishes();
        this.dishMenu = new List<DishMenuItemViewModel>();
        foreach (var dish in dishes)
        {
            DishMenuItemViewModel item = new DishMenuItemViewModel();
            item.Dish = dish;
            this.dishMenu.Add(item);
        }
    }
    private void PlaceOrderCommandExecute()
    {
        var selectedDishes = this.dishMenu.Where(i => i.IsSelected == true).Select(i => i.Dish.Name).ToList();
        IOrderService orderService = new MockOrderService();
        orderService.PlaceOrder(selectedDishes);
        MessageBox.Show("订餐成功");
    }
    private void SelectMenuItemExecute()
    {
        Count = DishMenu.Count(i => i.IsSelected == true);
    }
}

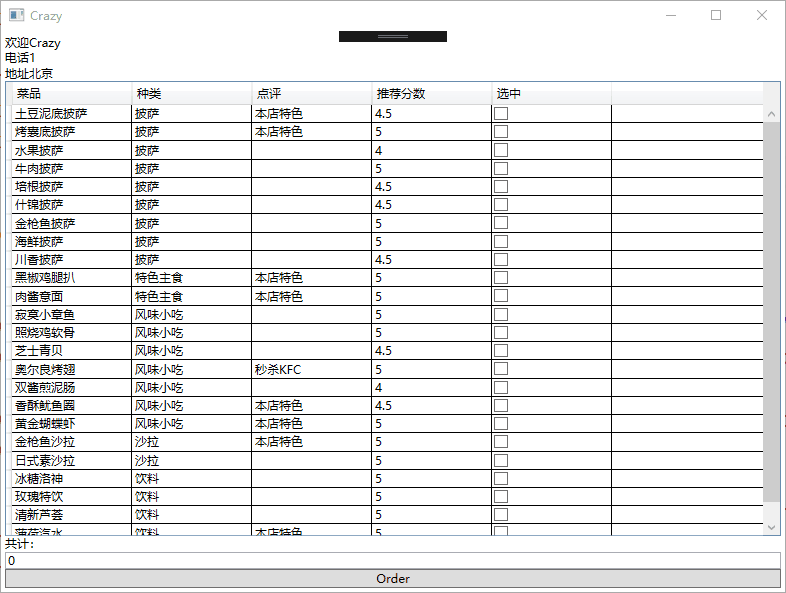

xaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
<Window x:Class="WpfApp8.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp8"
        mc:Ignorable="d"
        Title="{Binding Restaurant.Name}" Height="600" Width="800" WindowStartupLocation="CenterScreen">

    <Grid x:Name="Root" Margin="4">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
            <RowDefinition Height="Auto"/>
        </Grid.RowDefinitions>
        <StackPanel>
            <StackPanel Orientation="Horizontal" >
                <TextBlock Text="欢迎"/>
                <TextBlock Text="{Binding Restaurant.Name}"/>
            </StackPanel>
            <StackPanel Orientation="Horizontal">
                <TextBlock Text="电话"/>
                <TextBlock Text="{Binding Restaurant.PhoneNumber}"/>
            </StackPanel>
            <StackPanel Orientation="Horizontal">
                <TextBlock Text="地址"/>
                <TextBlock Text="{Binding Restaurant.Address}"/>
            </StackPanel>
        </StackPanel>
        <DataGrid AutoGenerateColumns="False" CanUserDeleteRows="False" CanUserAddRows="False" Grid.Row="1" ItemsSource="{Binding DishMenu}">
            <DataGrid.Columns>
                <DataGridTextColumn Header="菜品" Binding="{Binding Dish.Name}" Width="120"/>
                <DataGridTextColumn Header="种类" Binding="{Binding Dish.Category}" Width="120"/>
                <DataGridTextColumn Header="点评" Binding="{Binding Dish.Comment}" Width="120"/>
                <DataGridTextColumn Header="推荐分数" Binding="{Binding Dish.Score}" Width="120"/>
                <DataGridTemplateColumn Header="选中" SortMemberPath="IsSelected" Width="120">
                    <DataGridTemplateColumn.CellTemplate>
                        <!--要获取每列数据,为每条数据赋值Command-->
                        <DataTemplate>
                            <CheckBox IsChecked="{Binding Path=IsSelected,UpdateSourceTrigger=PropertyChanged}" Command="{Binding Path=DataContext.SelectMenuItemCommand,RelativeSource={RelativeSource Mode=FindAncestor,AncestorType={x:Type DataGrid}}}"/>
                        </DataTemplate>
                    </DataGridTemplateColumn.CellTemplate>
                </DataGridTemplateColumn>
            </DataGrid.Columns>
        </DataGrid>
        <StackPanel Grid.Row="2">
            <TextBlock Text="共计："/>
            <TextBox IsReadOnly="True" Text="{Binding Count}"/>
            <Button Content="Order" Command="{Binding PlaceOrderCommand}"/>
        </StackPanel>
    </Grid>
</Window>

WPF MVVM

https://bubuweiying.site/WPFMVVM/

作者

步步为营

发布于

2024-05-08

更新于

2025-03-15

许可协议

#

喜欢这篇文章？打赏一下作者吧

交个朋友 ↘

分类

链接

标签

.net5
.net core40
AI11
AJAX4
C#5
C#互操作1
C#接口1
C++1
C++/CLI5
C/C++2
CPP9
CSS3
CSnakes1
ChatGPT1
Docker1
Dos1
Flex1
GMesh2
Git1
HTML5
JavaScript10
Linux1
MCP2
Nginx3
NumPy1
OCC6
OSS1
QML1
QT28
Quartz.net3
SEO2
SVG1
Semantic Kernel18
TypeScript1
UML1
VTK4
VUE30
WPF51
Web APIs6
Workflow Core7
blazor5
hexo1
http1
node.js2
python17
three.js2
单元测试1
模式匹配1
源代码生成器2
观察者模式1
计算机图形学5
高级调试2

目录

最新文章

×
