netCore WebAPI基础5

分页

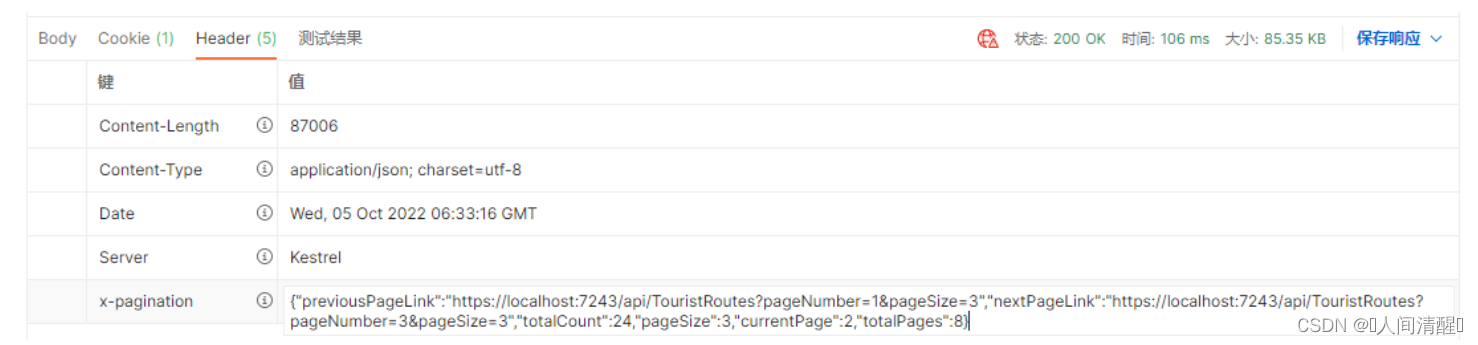

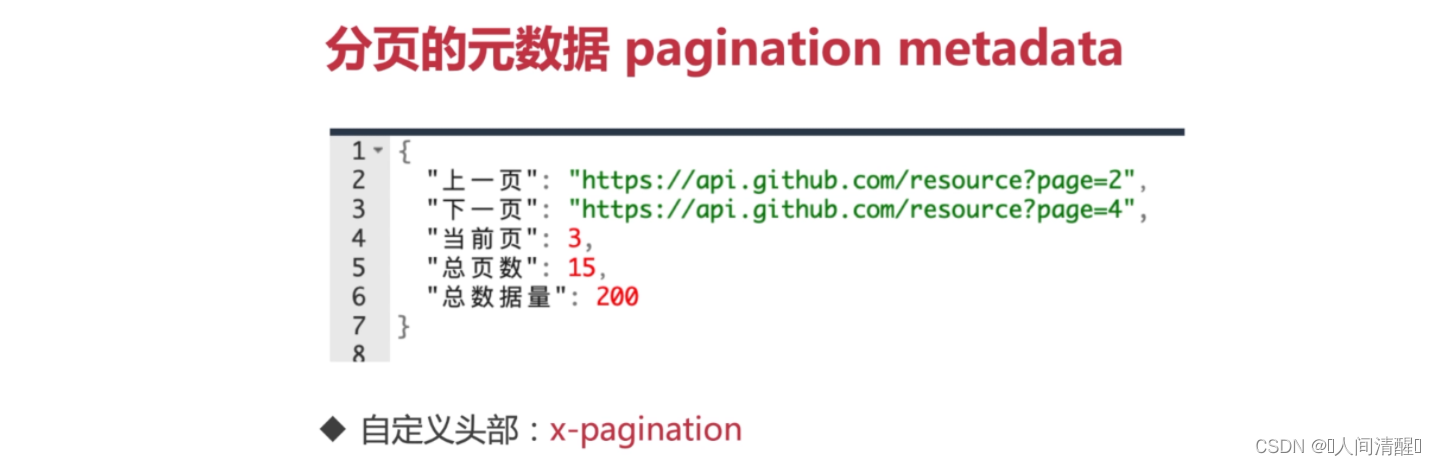

分页后需要将分页数据返回到head文件中，如

实现过程

  1. program中注册builder.Services.AddSingleton<IActionContextAccessor, ActionContextAccessor>();

  2. 控制器中增加依赖

1
2
3
4
5
private readonly IUrlHelper _urlHelper;
public TouristRoutesController( IActionContextAccessor actionContextAccessor)
{
 	_urlHelper = urlHelperFactory.GetUrlHelper(actionContextAccessor.ActionContext);
}
  1. 生成前一页和后一页的方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public enum ResourceUriType
{
    PreviousPage,
    NextPage
}

private string? GenerateTouristRouteResourceURL(TouristRouteResourcecParamaters paramaters, PaginationResourceParamaters paramaters2, ResourceUriType type)
{
    return type switch
    {
        ResourceUriType.PreviousPage => _urlHelper.Link("GetTouristRoutes",
        new
        {
            keyword = paramaters.Keyword,
            rating = paramaters.Rating,
            pageNumber = paramaters2.PageNumber - 1,
            pageSize = paramaters2.PageSize
        }),
        ResourceUriType.NextPage => _urlHelper.Link("GetTouristRoutes",
        new
        {
            keyword = paramaters.Keyword,
            rating = paramaters.Rating,
            pageNumber = paramaters2.PageNumber + 1,
            pageSize = paramaters2.PageSize
        }),
        _ => _urlHelper.Link("GetTouristRoutes",
        new
        {
            keyword = paramaters.Keyword,
            rating = paramaters.Rating,
            pageNumber = paramaters2.PageNumber,
            pageSize = paramaters2.PageSize
        })
    };
}
  1. 控制器中的查询操作方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
[HttpGet(Name = "GetTouristRoutes")]
[HttpHead]
[Authorize(AuthenticationSchemes = "Bearer")]//identity多角色验证时必须指定
public async Task<IActionResult> GetTouristRoutes([FromQuery] TouristRouteResourcecParamaters paramaters, [FromQuery] PaginationResourceParamaters paramaters1)
{

    var routes = await _tourisTouteRepository.GetTourisRoutesAsync(paramaters.Keyword, paramaters.RatingOperator,paramaters.RatingValue, paramaters1.PageSize,paramaters1.PageNumber);
    if (routes == null || routes.Count() <= 0)
    {
        return NotFound("没有旅游路线");
    }
    var touristRouteDto = _mapper.Map<IEnumerable<TouristRouteDto>>(routes);
    //生成前页面链接
    var previousPageLink = routes.HasPrevious ? GenerateTouristRouteResourceURL(paramaters, paramaters1, ResourceUriType.PreviousPage) : null;
    //生成前页面链接
    var nextPageLink = routes.HasNext ? GenerateTouristRouteResourceURL(paramaters, paramaters1, ResourceUriType.NextPage) : null;

    //增加头部信息
    var paginationMetadata = new
    {
        previousPageLink,
        nextPageLink,
        totalCount = routes.TotalCount,
        pageSize = routes.PageSize,
        currentPage = routes.CurrentPage,
        totalPages = routes.TotalPages
    };
    Response.Headers.Add("x-pagination",Newtonsoft.Json.JsonConvert.SerializeObject(paginationMetadata));
    return Ok(touristRouteDto);
}

排序

思路为解析地址栏中用户想以哪个字段进行那种排序（升降），核心就是要引用using System.Linq.Dynamic.Core;可以通过字符串，而不是对象使用result.OrderBy(t => t.OriginalPrice);

  1. 映射值类
1
2
3
4
5
6
7
8
9
public class PropertyMappingValue
{
    //将要被映射的属性列表
    public IEnumerable<string> DestinationProperties { get; private set; }
    public PropertyMappingValue(IEnumerable<string> destinationProperties)
    {
        DestinationProperties = destinationProperties;
    }
}
  1. 映射类
1
2
3
4
5
6
7
8
9
10
11
12
13
//为了方便注入，先定义接口
public interface IPropertyMapping
{
}
public class PropertyMapping<TSource,TDestination>:IPropertyMapping
{
    //属性所匹配的字符串字典
    public Dictionary<string,PropertyMappingValue> _mappingDictionary { set; get; }
    public PropertyMapping(Dictionary<string, PropertyMappingValue> mappingDictionary)
    {
        _mappingDictionary = mappingDictionary;
    }
}
  1. 映射服务类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
//为了方便注入，先定义接口
public interface IPropertyMappingService
{
    Dictionary<string, PropertyMappingValue> GetPropertyMapping<TSource, TDestination>();
    bool IsMappingExists<TSource, TDestingation>(string fields);
}
public class PropertyMappingService : IPropertyMappingService
{
    //设定字符串与PropertyMappingValue的对应关系
    private Dictionary<string, PropertyMappingValue> _touristRoutePropertyMapping =
       new Dictionary<string, PropertyMappingValue>(StringComparer.OrdinalIgnoreCase)
       {
           { "Id", new PropertyMappingValue(new List<string>(){ "Id" }) },
           { "Title", new PropertyMappingValue(new List<string>(){ "Title" })},
           { "Rating", new PropertyMappingValue(new List<string>(){ "Rating" })},
           { "OriginalPrice", new PropertyMappingValue(new List<string>(){ "OriginalPrice" })},
       };
	//定义一个映射对象，映射对象里面包含字符串和PropertyMappingValue对应的字典
    private IList<IPropertyMapping> _propertyMappings = new List<IPropertyMapping>();

    public PropertyMappingService()
    {	//将新建的对应列表加入到私有映射对象
        _propertyMappings.Add(
            new PropertyMapping<TouristRouteDto, TouristRoute>(
                _touristRoutePropertyMapping));
    }

    public Dictionary<string, PropertyMappingValue>
        GetPropertyMapping<TSource, TDestination>()
    {
        // 获得匹配的映射对象
        var matchingMapping =
            _propertyMappings.OfType<PropertyMapping<TSource, TDestination>>();

        if (matchingMapping.Count() == 1)
        {
            return matchingMapping.First()._mappingDictionary;
        }

        throw new Exception(
            $"Cannot find exact property mapping instance for <{typeof(TSource)},{typeof(TDestination)}");

    }

    public bool IsMappingExists<TSource, TDestination>(string fields)
    {
        var propertyMapping = GetPropertyMapping<TSource, TDestination>();

        if (string.IsNullOrWhiteSpace(fields))
        {
            return true;
        }

        //逗号来分隔字段字符串
        var fieldsAfterSplit = fields.Split(",");

        foreach(var field in fieldsAfterSplit)
        {
            // 去掉空格
            var trimmedField = field.Trim();
            // 获得属性名称字符串
            var indexOfFirstSpace = trimmedField.IndexOf(" ");
            var propertyName = indexOfFirstSpace == -1 ?
                trimmedField : trimmedField.Remove(indexOfFirstSpace);

            if (!propertyMapping.ContainsKey(propertyName))
            {
                return false;
            }
        }
        return true;
    }
}

  1. nuget安装System.Linq.Dynamic.Core。IQueryable扩展类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
public static class IQueryableExtensions
{
    public static IQueryable<T> ApplySort<T>(
        this IQueryable<T> source,
        string orderBy,
        Dictionary<string, PropertyMappingValue> mappingDictionary
    )
    {
        if (source == null)
        {
            throw new ArgumentNullException("source");
        }

        if (mappingDictionary == null)
        {
            throw new ArgumentNullException("mappingDictionary");
        }

        if (string.IsNullOrWhiteSpace(orderBy))
        {
            return source;
        }

        var orderByString = string.Empty;

        var orderByAfterSplit = orderBy.Split(',');

        foreach(var order in orderByAfterSplit)
        {
            var trimmedOrder = order.Trim();

            // 通过字符串“ desc”来判断升序还是降序
            var orderDescending = trimmedOrder.EndsWith(" desc");

            // 删除升序或降序字符串 " asc" or " desc"来获得属性的名称
            var indexOfFirstSpace = trimmedOrder.IndexOf(" ");
            var propertyName = indexOfFirstSpace == -1
                ? trimmedOrder
                : trimmedOrder.Remove(indexOfFirstSpace);

            if (!mappingDictionary.ContainsKey(propertyName))
            {
                throw new ArgumentException($"Key mapping for {propertyName} is missing");
            }

            PropertyMappingValue  propertyMappingValue = mappingDictionary[propertyName];
            if (propertyMappingValue == null)
            {
                throw new ArgumentNullException("propertyMappingValue");
            }

            foreach(var destinationProperty in
                propertyMappingValue.DestinationProperties.Reverse())
            {
                // 给IQueryable 添加排序字符串
                orderByString = orderByString +
                    (string.IsNullOrWhiteSpace(orderByString) ? string.Empty : ", ")
                    + destinationProperty
                    + (orderDescending ? " descending" : " ascending");
            }
        }
        //核心
        //要引用using System.Linq.Dynamic.Core;可以通过字符串，而不是result.OrderBy(t => t.OriginalPrice);
        return source.OrderBy(orderByString);
    }
}

  1. program注册builder.Services.AddTransient<IPropertyMappingService, PropertyMappingService>();

  2. 在数据库服务仓库中

1
2
3
4
5
6
7
8
...
if (!string.IsNullOrWhiteSpace(orderBy))
{
    var touristRouteMappingDictonary = _propertyMappingService.GetPropertyMapping<TouristRouteDto, TouristRoute>();
    result= result.ApplySort(orderBy, touristRouteMappingDictonary);
}
return await PaginationList<TouristRoute>.CreateAsync(pageNumber,pageSize,result);

  1. 控制器中的操作方法
1
2
3
4
5
//判断输入中是否有匹配的相应类型
if (!_propertyMappingService.IsMappingExists<TouristRouteDto,TouristRoute>(paramaters.OrderBy))
{
    return BadRequest("输入正确排序参数");
}

数据塑形

在某些条件下，用户只想得到商品id和名称，如果返回商品的所有信息则造成了带宽的浪费。

  1. 对象或者集合的扩展方法，以集合为例
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
public static class IEnumberableExtensions
{
    public static IEnumerable<ExpandoObject> ShapeData<TSource>(this IEnumerable<TSource> source,string fields)
    {
        if (source == null)
        {
            throw new ArgumentNullException(nameof(source));
        }
        var expandoObjectList = new List<ExpandoObject>();//保存动态对象

        //避免列表中遍历数据，创建一个属性信息列表
        var propertyInfoList = new List<PropertyInfo>();

        if (string.IsNullOrWhiteSpace(fields))
        {
            //获得TSource所有的属性和实例
            var propertyInfos = typeof(TSource)
                .GetProperties(BindingFlags.IgnoreCase | BindingFlags.Public | BindingFlags.Instance);
            propertyInfoList.AddRange(propertyInfos);
        }
        else
        {
            var fieldAfterSplit = fields.Split(',');
            foreach (var field in fieldAfterSplit)
            {
                var propertyName = field.Trim();
                var propertyInfo = typeof(TSource)
                    .GetProperty(propertyName, BindingFlags.IgnoreCase | BindingFlags.Public | BindingFlags.Instance);
                if (propertyInfo == null )
                {
                    throw new ArgumentNullException("无相关属性");
                }
                propertyInfoList.Add(propertyInfo);
            }
        }
        foreach (TSource sourceObject in source )
        {
            //创建动态对象
            var dataShapedObject = new ExpandoObject();
            foreach (var propertyInfo in propertyInfoList)
            {
                //获得对应属性的真实数据
                var propertyValue = propertyInfo.GetValue(sourceObject);
                ((IDictionary<string,object>)dataShapedObject).Add(propertyInfo.Name, propertyValue);
            }
            expandoObjectList.Add(dataShapedObject);
        }
        return expandoObjectList;
    }
}

  1. 只需要在操作方法的返回值中使用return Ok(touristRouteDto.ShapeData(Fields));访问地址为https://localhost:7243/api/touristroutes?fields=id,title

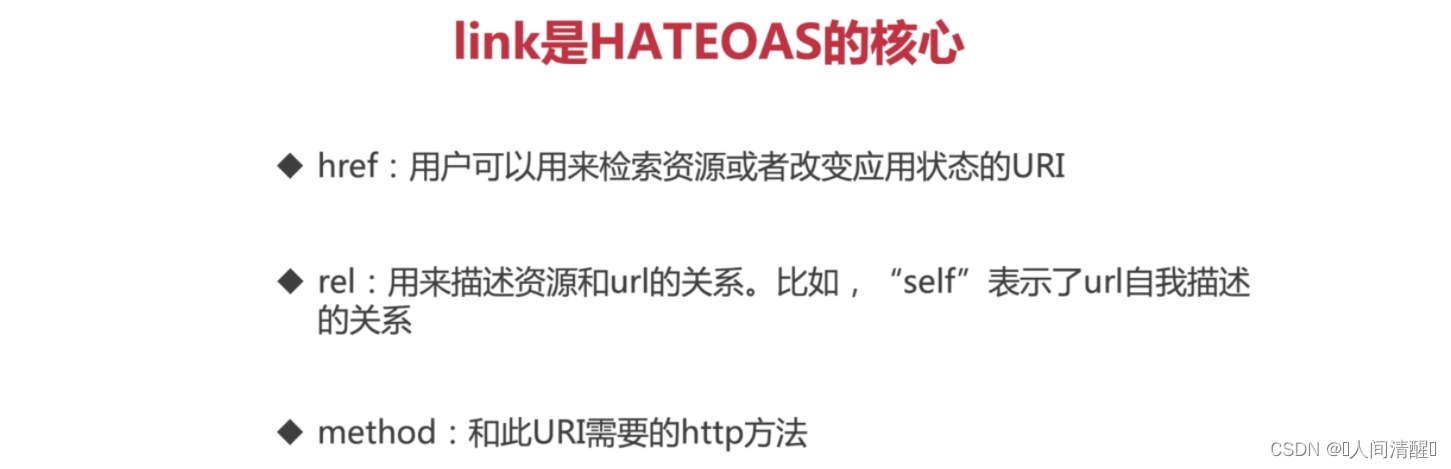

多媒体HATEOAS

即在返回数据的同时，返回相关的自发现链接

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
private IEnumerable<LinkDto> CreateLinkForTouristRoute(Guid touristRouteId, string? fields)
{
    var links = new List<LinkDto>();
    links.Add(
        new LinkDto(
                Url.Link("GetTouristRouteById",new { touristRouteId , fields }),
                "self",
                "Get"
            )

        );
    return links;
}

[HttpGet("{touristRouteId:Guid}", Name = "GetTouristRouteById")]
public async Task<IActionResult> GetTouristRouteById(Guid touristRouteId,string? fields, [FromHeader(Name ="Accept")] string mediaType)
{
    var routes = await _tourisTouteRepository.GetTourisRouteAsync(touristRouteId);

    if (routes == null)
    {
        return NotFound($"旅游路线{touristRouteId}找不到");
    }
    var touristRouteDto = _mapper.Map<TouristRouteDto>(routes);
    var linkDtos = CreateLinkForTouristRoute(touristRouteId, fields);
    var result = routes.ShapeData(fields) as IDictionary<string, object>; //数据塑形
	result.Add("links", linkDtos);
    return Ok(result);
}

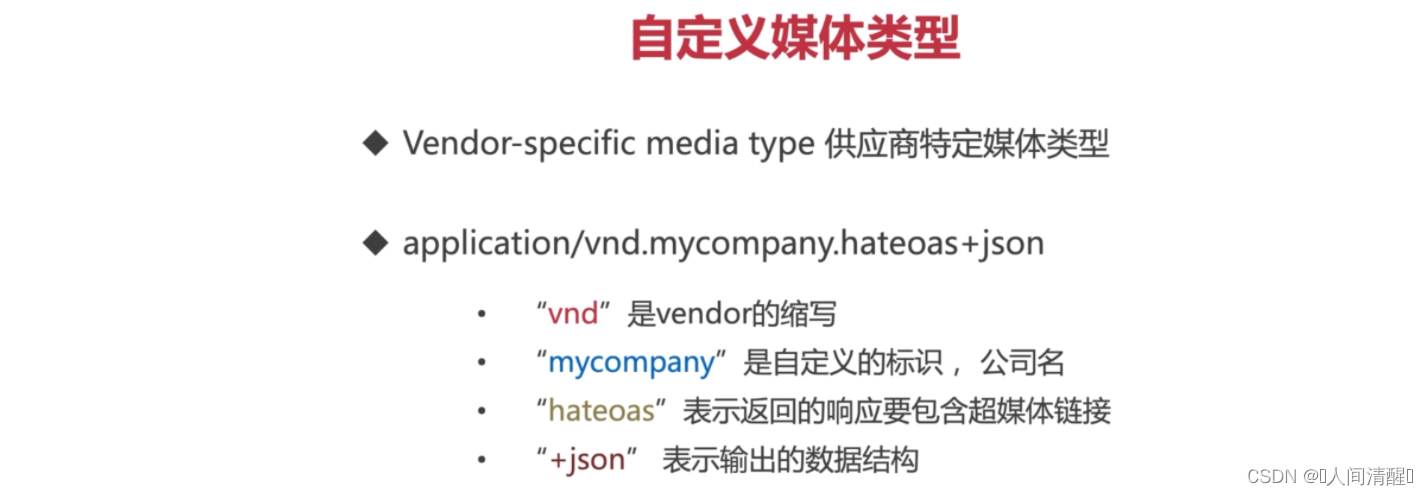

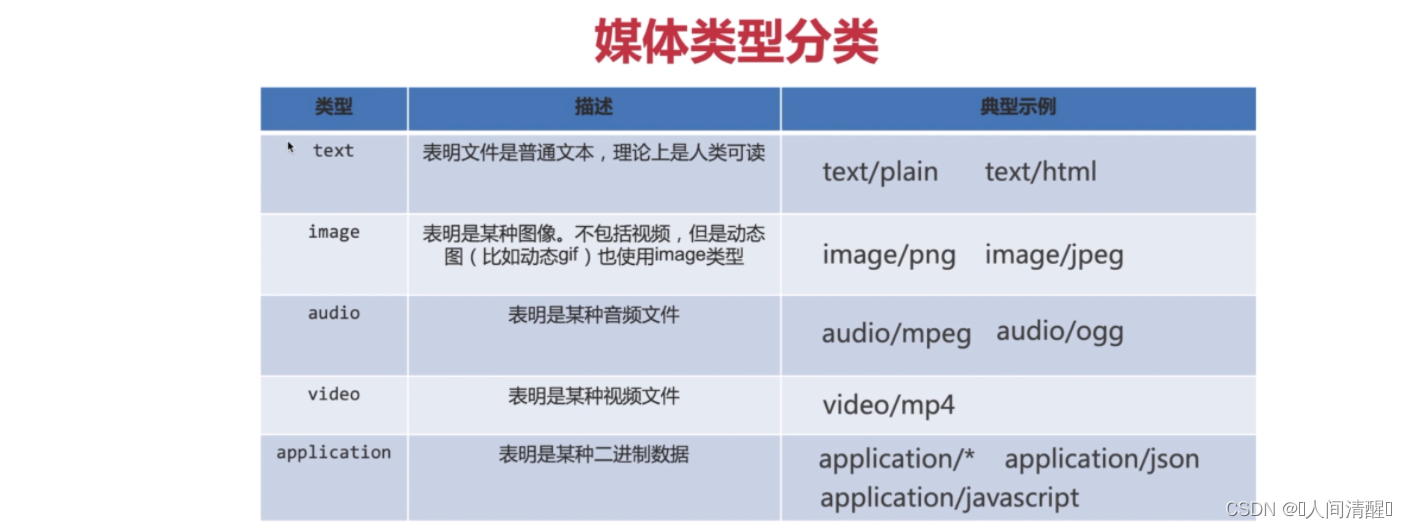

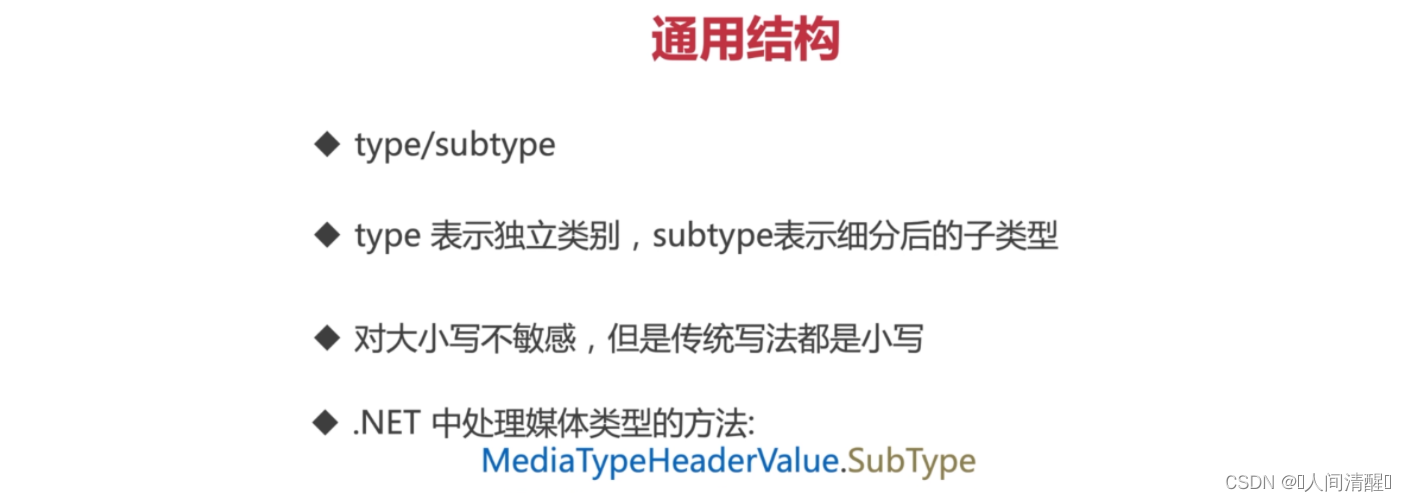

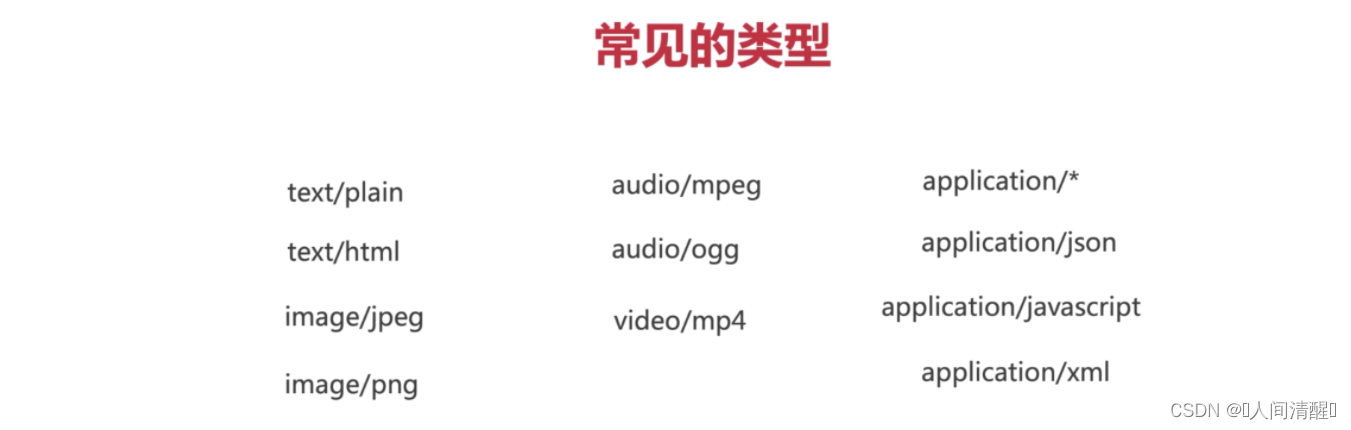

某些情况，会不想返回自发现链接，这时候就需要head中的内容协商来解决，如头文件中Accept:"application/vnd.qs.hateoas+json"



全局设定媒体类型

  1. program
1
2
3
4
5
6
7
builder.Services.Configure<MvcOptions>(config => {
    var outputFormatter = config.OutputFormatters.OfType<NewtonsoftJsonOutputFormatter>()?.FirstOrDefault();
    if (outputFormatter !=null)
    {
        outputFormatter.SupportedMediaTypes.Add("application/vnd.qs.hateoas+json");
    }
});
  1. 操作方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
using Microsoft.Net.Http.Headers;
[HttpGet("{touristRouteId:Guid}", Name = "GetTouristRouteById")]
public async Task<IActionResult> GetTouristRouteById(Guid touristRouteId,string? fields, [FromHeader(Name ="Accept")] string mediaType)
{
 //一般为TryParse，因为可以能会设置多个
    if (!MediaTypeHeaderValue.TryParse(mediaType, out MediaTypeHeaderValue parasedMediatype))
    {
        return BadRequest();
    }


    var routes = await _tourisTouteRepository.GetTourisRouteAsync(touristRouteId);

    if (routes == null)
    {
        return NotFound($"旅游路线{touristRouteId}找不到");
    }
    var touristRouteDto = _mapper.Map<TouristRouteDto>(routes);
    var linkDtos = CreateLinkForTouristRoute(touristRouteId, fields);
    var result = routes.ShapeData(fields) as IDictionary<string, object>;

    if (parasedMediatype.MediaType == "application/vnd.qs.hateoas+json")
    {
        result.Add("links", linkDtos);

    }
    return Ok(result);

}
//只有头文件中的Accept中设置"application/vnd.qs.hateoas+json"才能获得link

局部设定媒体类型

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
//筛选器
[Produces(
    "application/json",
    "application/vnd.aleks.hateoas+json"
    )]
[HttpGet("{touristRouteId:Guid}", Name = "GetTouristRouteById")]
public async Task<IActionResult> GetTouristRouteById(Guid touristRouteId,string? fields, [FromHeader(Name ="Accept")] string mediaType)
{
    if (!MediaTypeHeaderValue.TryParse(mediaType, out MediaTypeHeaderValue parasedMediatype))
    {
        return BadRequest();
    }


    var routes = await _tourisTouteRepository.GetTourisRouteAsync(touristRouteId);

    if (routes == null)
    {
        return NotFound($"旅游路线{touristRouteId}找不到");
    }
    var touristRouteDto = _mapper.Map<TouristRouteDto>(routes);
    var linkDtos = CreateLinkForTouristRoute(touristRouteId, fields);
    var result = routes.ShapeData(fields) as IDictionary<string, object>;
	//SubTypeWithoutSuffix会把后面的+json去掉
    bool isHateoas = parasedMediatype.SubTypeWithoutSuffix.EndsWith("hateoas", StringComparison.InvariantCultureIgnoreCase);



    if (isHateoas)
    {
        result.Add("links", linkDtos);

    }
    return Ok(result);

netCore WebAPI基础5

https://bubuweiying.site/netCoreWebAPI基础5/

作者

步步为营

发布于

2024-06-01

更新于

2025-03-15

许可协议

#

喜欢这篇文章？打赏一下作者吧

交个朋友 ↘

分类

链接

标签

.net5
.net core40
AI11
AJAX4
C#5
C#互操作1
C#接口1
C++1
C++/CLI5
C/C++2
CPP9
CSS3
CSnakes1
ChatGPT1
Docker1
Dos1
Flex1
GMesh2
Git1
HTML5
JavaScript10
Linux1
MCP2
Nginx3
NumPy1
OCC6
OSS1
QML1
QT28
Quartz.net3
SEO2
SVG1
Semantic Kernel18
TypeScript1
UML1
VTK4
VUE30
WPF51
Web APIs6
Workflow Core7
blazor5
hexo1
http1
node.js2
python17
three.js2
单元测试1
模式匹配1
源代码生成器2
观察者模式1
计算机图形学5
高级调试2

目录

最新文章

×
